Farm Installation Addendum

In a Federation Server Farm environment, administrators are required to follow these additional steps to ensure successful installation of the adapter.



The installer stores the Client Secret as a protected string. That protected string is generated using a machine specific key.

When ADFS is setup in a server farm, the configuration file is replicated among farm member servers. As a result the final configuration file will contain a single client secret that can only be decrypted by one server; the last server on which the installation was completed.

If the ADFS server farm is using the WID database and not a SQL database you will also need to promote each server to be the primary server during the installation. We recommend starting the installation on the current primary server, if you start on the primary server and follow the sequence as described below you will complete the installation on the original primary server returning it to its primary state. Identify the current primary server with the powershell command Get-AdfsFarmInformation

Process Overview

  1. If installing on servers in a WID based ADFS farm identify the current primary server, start the sequence from there.
  2. Perform the installation as described inInstall the Okta ADFS Plugin on your ADFS Server.
  3. Retrieve and copy the protected string values from each server.
  4. Combine the values in a modified configuration file.
  5. Replace the configuration file with the modified version on the last server.
  6. Manually re-register the ADFS Authentication Provider.

Detailed Procedure

  1. If using a local database farm (WID) and the current computer is NOT the primary server in the farm promote it to primary by executing this command on server:

    Set-AdfsSyncProperties -Role PrimaryComputer

  2. Perform the installation as described above on the first server.
  3. Open the okta_adfs_adapter.json file (%ProgramFiles%\Okta\Okta MFA Provider\config) with a text editor such as Notepad:

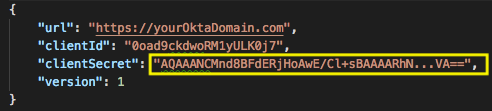

    1. Copy the client secret value (truncated secret shown)
    2. Paste the value in a separate file
    3. Repeat Step 2 on the remaining servers in the environment
    4. Proceed to Step 4 when you’ve completed the preceding steps on all of the servers in the farm.
  4. Combine the values in a modified configuration file:
    1. From the original primary server
    2. Promote the server back to primary:

      Set-AdfsSyncProperties -Role PrimaryComputer

    3. Open the okta_adfs_adapter.json file:

      If UAC is on make sure your editor is running as administrator

    4. Copy/Paste the entire contents of your seperate file that contains the protected secrets from the other servers.

    5. Shown below are the four protected strings from my servers and the full configuration file from the first (and now primary) server in one file.

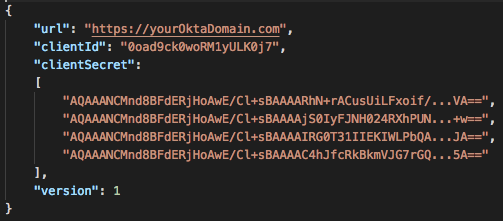

    6. Arrange the list of protected strings into a json array (note the last element in the array does not end with a comma).

    7. Replace the clientSecret string value of your complete configuration file with the array you just created.

      Note: Indentation and new line formatting is optional
    8. Optional: Use a json lint tool to validate the json is well formed. Online versions are available, use at your own discretion. For example:
  5. Replace the configuration file with the modified version on the last server:
    • Replace the okta_adfs_adapter.json file on the last server with the newly created config file.
    • Note: you may need to run notepad as a administrator
  6. Manually re-register the Adfs Authentication Provider:
    • Sample Script:

      $a=[System.Reflection.Assembly]::LoadFile("C:\Program Files\Okta\Okta MFA Provider\bin\OktaMfaAdfs.dll")

      $file=[String]::Format("OktaMfaAdfs.AuthenticationAdapter, {0}", $a.GetName().FullName)

      Unregister-AdfsAuthenticationProvider -Name "OktaMfaAdfs"

      Register-AdfsAuthenticationProvider -Name "OktaMfaAdfs" -TypeName $file -ConfigurationFilePath "C:\Program Files\Okta\Okta MFA Provider\config\okta_adfs_adapter.json"
