Configure NetMotion Mobility to work with RADIUS

During this task we will use the NetMotion Server console to configure NetMotion to work with RADIUS.

Before you begin

  • Ensure that you have the common UDP port and secret key values available.

In your NetMotion Mobility Server console:

  1. Navigate to Configure > Authentication Settings.

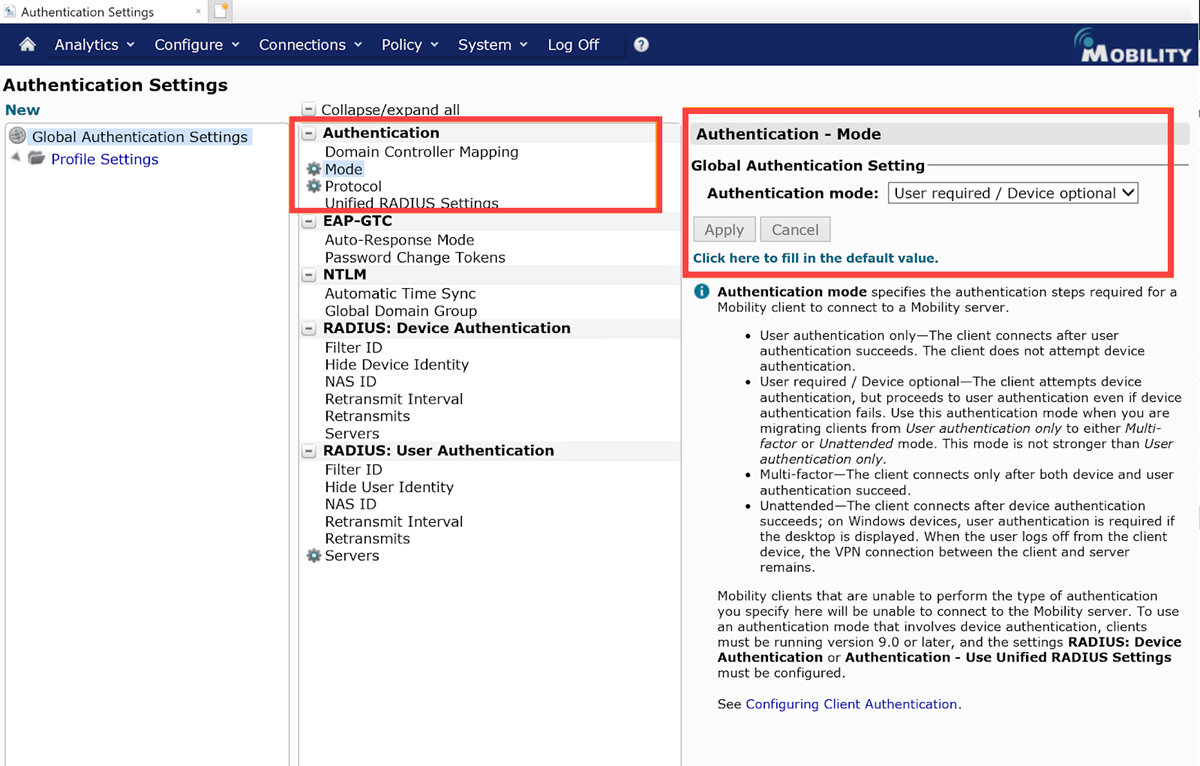

  2. Under Authentication > Mode, set Authentication Mode = User required or User required/Device Optional.

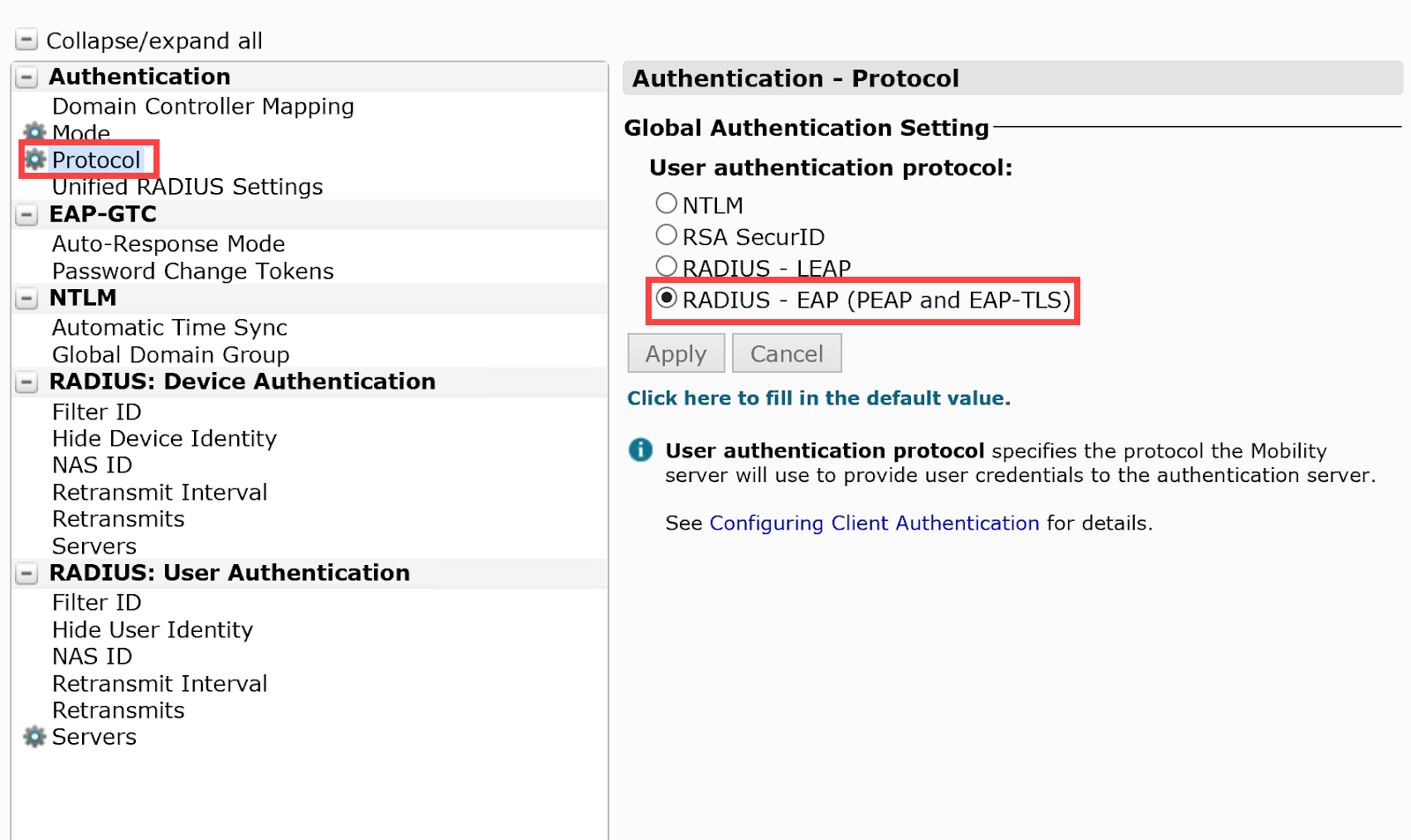

  3. Under Authentication > Protocol, set User authentication Protocol = RADIUS - EAP (PEAP and EAP-TLS).

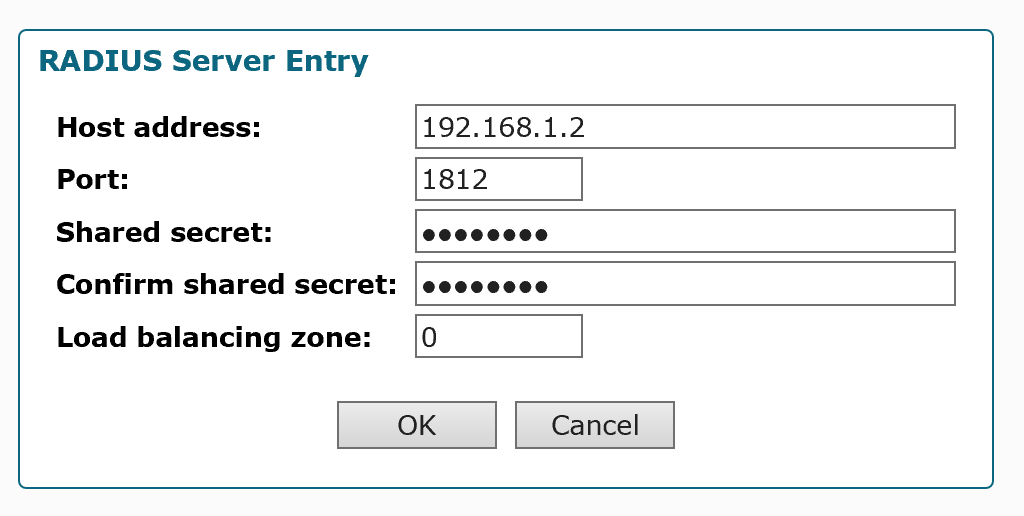

  4. Under RADIUS: User Authentication > Server, set the Host address. Port, and Shared secret and click OK.
  5. Under RADIUS: User Authentication > Retransmit Interval, set the retransmit interval to 100 seconds.
  6. For load balanced instances, change load-balancing algorithm for NetMotion.
  7. Save these settings.
